Appl ication

      Huayun pump is applicable in conveying all  kinds of liquid Material in the industries of dairy，beer，beverage，pharmaceutical And chemistry. it conveys not only normal ion or middle viscous Solutions but also suspension and corrosive fluids sanitary

      Huayun pump has types of single state，single suction and Open-styledimpeller. with its elaborate design in shell and impeller, Resistance is reduced and unhygienic dead angle is thoroughly Eliminated due to its special structure the liquid flow speed in the Pump is promoted to its whole performance, also it has an easy Access for cleaning which presents its outstanding sanitary Features, it meets the product gentle treatment require-ments as Well as anti-chemical-corrosive character.

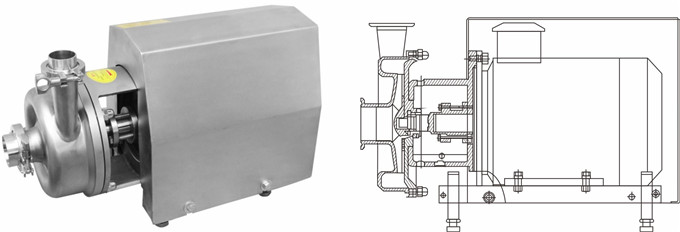

Product structure

      1. The pump by the pump body, impeller, shaft, frame, motor parts, precision, Makes it move easily.
      2. The pump body is equipped with gas water separation room and out of the same, water storage chamber and the backflow preventer is same. Since the Suction, the backflow valve is automatically opened, was the backflow valve body is equipped with the impeller conical spray
When the mouth, self-priming helps to improve the self-priming speed.
      3. The connection between the pump body and the water is equipped with rubber valve plates, stops automatically shut down, keep the pump Filled with liquid inside for next time bring liquid.
      4. The lower pump imports, has put liquid mouth, twist open liquid fitting, pump in liquid Put the net.
      5. Fluid outlet, liquid into the mouth with a rubber sealing ring, shaft, sealing adopts mechanical seal To seal the.

Product features and usage range

      The health class self-priming pump has a compact structure, beautiful appearance, light weight and anti-white operation Characteristics, the pump body and the liquid contact part all adopt SUS304 or SUS316 high grade material It is made from cold machining and has good corrosion resistance to acid, alkali and salt solution It is a one-way trip for all kinds of liquids such as wine, water, milk, vinegar and edible vegetable oil The suction pump does not need to pump the liquid in the pump every time it is sent. It is suitable for milk, food and food. Beverages, beer, chemicals, medicine, textiles, etc., and can be used with the filter.


Appl ication

      CIP self-priming pump uses acid resistant stainless steel (AISI316) as the main material of the pump body, possessing the character of resisting the erosion of acid and alkali and going well with the requirements of food sanitary. The self-oriming pump can inhale the liquids with air or foams and ir can also work well even in the condition of only air So it is the capacitive pump with the superior characters than centrifugal pumps. It is broadly used in imbibition when liquid surface is lower than the pump. E.g. it can inhale the milk from the barrel; It can also be used in the CIP as the returning pump for cleaning tank, mechanical sealed ad internal flow. The temperature of the absorbing material can not be higher tan 100℃.

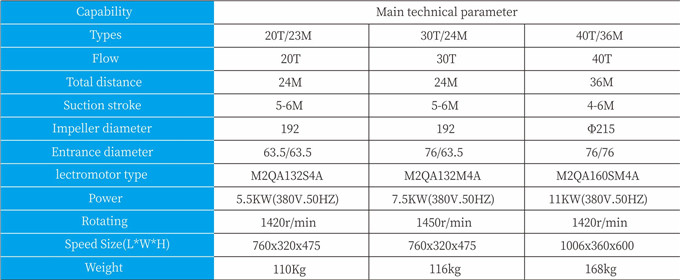

Performance technical parameters

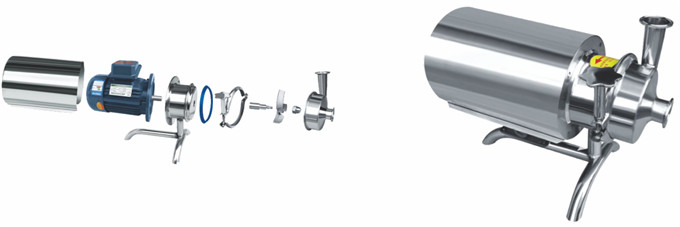

Product structure

      1.The centrifugal beverage pump is composed of motor, pump casing, wing wheel, clip, supporting foot, etc The structure is compact and easy to install.
      2.The motor and pump casing are bolted and supported by the foot, supporting the foot to move freely without any need Clamp and rubber sealing ring to support the shell of the foot and the inlet and exit casing The disassembly allows the pump's outlet to have any Angle.
      3.The wing wheel is made of 316L of high quality material, so as not to allow the bacteria to gather, it is easy to remove Discharge cleaning characteristics.
      4.Machine parts: install 3Cr13 stainless steel connecting shaft on the shaft of the fully enclosed motor. Made of stainless steel spring, rubber gasket, carbon graphite, and mechanical seal structure, In case the liquid is leaking.



Product overview

      The centrifugal beverage pump is also known as pump and health drink pump, which is suitable for conveying milk and its products It was similar to the colloid liquid food, absorbing material is 70-80 ℃, the highest temperature This pump is an all-enclosed centrifugal pump.
